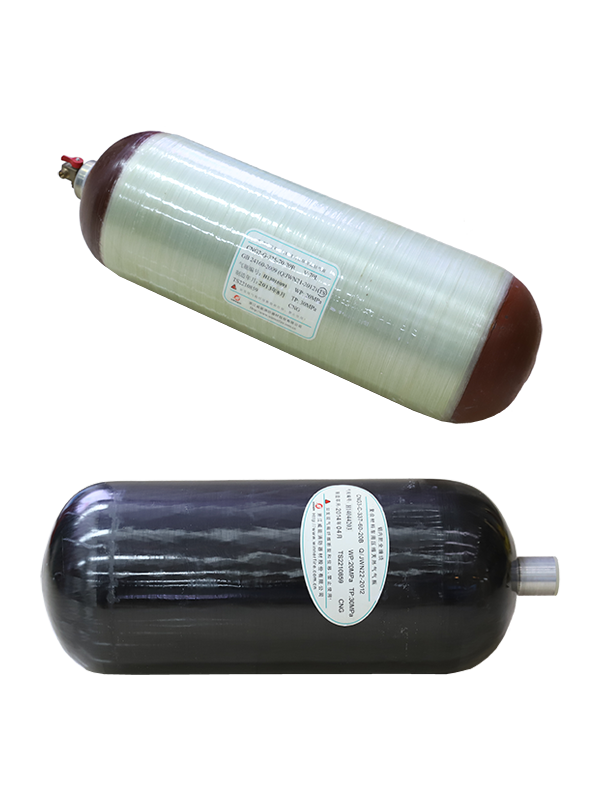

CNG Steel Cylinder & Composite Gas Cylinders

0
Views: 183
Product Details

  • GB/T 17258

    ISO 11439

    ECE R 110

    Q/JWN 21 (GB/T 24160, MOD)

    ISO 11439

    ECE R 110

    Q/JWN 22

    GB/T 28053

    EN 12245

    GB/T 17258 CNG steel cylinder for automotive vehicles
    Type Material

    Design wall

    thickness(mm)

    Outside

    Diameter
    (mm)

    Nominal water

    capacity (L)

    Length of shell

    (without valve)(mm)

    Nominal

    weight(kg)

    Working

    pressure(MPa )

    Test

    pressure
    (MPa)

    Certificate
    CNG1-232-30-20T 35CrMo 6.4  232 30 930 36.5 20 30 Type Approval

    Remarks: T means convex bottom.

    ISO 11439 CNG steel cylinder for automotive vehicles
    Type Material

    Design wall

    thickness(mm)

    Outside

    Diameter
    (mm)

    Nominal water

    capacity (L)

    Length of shell

    (without valve)(mm)

    Nominal

    weight(kg)

    Working

    pressure(MPa )

    Test

    pressure
    (MPa)

    Certificate
    CNG1-356-150-20B(T) 34CrMo4 8.0  356 150 1835 145 20 30 Type Approval
    CNG1-356-150-20B(P) 34CrMo4 8.0  356 150 1835 145 20 30 Type Approval

    Remarks: T means taper thread and P means straight thread.

    ECE R 110 CNG steel cylinder for automotive vehicles
    Type Material

    Design wall

    thickness(mm)

    Outside

    Diameter
    (mm)

    Nominal water

    capacity (L)

    Length of shell

    (without valve)(mm)

    Nominal

    weight(kg)

    Working

    pressure(MPa )

    Test

    pressure
    (MPa)

    Certificate
    CNG1-356-75-20B(T) 34CrMo4 8.0  356 75 1000 83 20 30 Type Approval
    CNG1-356-75-20B(P) 34CrMo4 8.0  356 75 1000 83 20 30 Type Approval
    CNG1-356-150-20B(T) 34CrMo4 8.0  356 150 1835 145 20 30 Type Approval
    CNG1-356-150-20B(P) 34CrMo4 8.0  356 150 1835 145 20 30 Type Approval

    Remarks: T means taper thread and P means straight thread.

    Q/JWN 21 (GB/T 24160, MOD)  Hoop-wrapped composite cylinders with steel liner for the on-board storage of compressed natural gas as a fuel for automotive vehicles
    Type

    Liner

    material

    Design wall

    thickness(mm)

    Liner Outside

    Diameter(mm)

    Cylinder Outside
    Diameter(mm)

    Nominal water

    capacity (L)

    Length of shell
    (without valve)(mm)

    Nominal

    weight(kg)

    Working

    pressure
    (MPa )

    Test

    pressure
    (MPa)

    Certificate
    CNG2-G-300-60-20B 30CrMo 4.0  300 310 60 1040 44 20 30 Type Approval
    CNG2-G-300-65-20B 30CrMo 4.0  300 310 65 1115 48 20 30 Type Approval
    CNG2-G-325-45-20B 30CrMo 4.5  325 335 45 710 37 20 30 Type Approval
    CNG2-G-325-50-20B 30CrMo 4.5  325 335 50 785 41 20 30 Type Approval
    CNG2-G-325-55-20B 30CrMo 4.5  325 335 55 850 43 20 30 Type Approval
    CNG2-G-325-60-20B 30CrMo 4.5  325 335 60 915 47 20 30 Type Approval
    CNG2-G-325-65-20B 30CrMo 4.5  325 335 65 980 50 20 30 Type Approval
    CNG2-G-325-70-20B 30CrMo 4.5  325 335 70 1045 53 20 30 Type Approval
    CNG2-G-325-75-20B 30CrMo 4.5  325 335 75 1110 56 20 30 Type Approval
    CNG2-G-325-80-20B 30CrMo 4.5  325 335 80 1175 59 20 30 Type Approval
    CNG2-G-356-60-20B 30CrMo 4.7  356 370 60 805 48 20 30 Type Approval
    CNG2-G-356-65-20B 30CrMo 4.7  356 370 65 860 52 20 30 Type Approval
    CNG2-G-356-70-20B 30CrMo 4.7  356 370 70 910 54 20 30 Type Approval
    CNG2-G-356-75-20B 30CrMo 4.7  356 370 75 965 58 20 30 Type Approval
    CNG2-G-356-80-20B 30CrMo 4.7  356 370 80 1015 60 20 30 Type Approval
    CNG2-G-356-90-20B 30CrMo 4.7  356 370 90 1125 68 20 30 Type Approval
    CNG2-G-356-100-20B 30CrMo 4.7  356 370 100 1230 73 20 30 Type Approval
    CNG2-G-356-115-20B 30CrMo 4.7  356 370 115 1395 84 20 30 Type Approval
    CNG2-G-356-120-20B 30CrMo 4.7  356 370 120 1445 87 20 30 Type Approval
    CNG2-G-356-140-20B 30CrMo 4.7  356 370 140 1660 100 20 30 Type Approval
    CNG2-G-356-145-20B 30CrMo 4.7  356 370 145 1715 103 20 30 Type Approval
    CNG2-G-406-82-20B 30CrMo 5.5  406 420 82 840 69 20 30 Type Approval
    CNG2-G-406-90-20B 30CrMo 5.5  406 420 90 910 74 20 30 Type Approval
    CNG2-G-406-100-20B 30CrMo 5.5  406 420 100 990 80 20 30 Type Approval
    CNG2-G-406-110-20B 30CrMo 5.5  406 420 110 1070 87 20 30 Type Approval
    CNG2-G-406-115-20B 30CrMo 5.5  406 420 115 1115 90 20 30 Type Approval
    ISO 11439 Hoop-wrapped composite cylinders with steel liner for the on-board storage of compressed natural gas as a fuel for automotive vehicles
    Type

    Liner

    material

    Design wall

    thickness(mm)

    Liner Outside

    Diameter(mm)

    Cylinder Outside
    Diameter(mm)

    Nominal water

    capacity (L)

    Length of shell

    (without valve)(mm)

    Nominal

    weight(kg)

    Working

    pressure
    (MPa )

    Test

    pressure
    (MPa)

    Certificate
    CNG2-G-370-100-20B(T) 34CrMo4 4.7  356 370 100 1230 73 20 30 Type Approval
    ECE R 110 Hoop-wrapped composite cylinders with steel liner for the on-board storage of compressed natural gas as a fuel for automotive vehicles
    Type

    Liner

    material

    Design wall

    thickness(mm)

    Liner Outside

    Diameter(mm)

    Cylinder Outside
    Diameter(mm)

    Nominal water

    capacity (L)

    Length of shell
    (without valve)(mm)

    Nominal

    weight(kg)

    Working

    pressure
    (MPa )

    Test

    pressure
    (MPa)

    Certificate
    CNG2-G-370-100-20B(T) 34CrMo4 4.7  356 370 100 1230 73 20 30 ECE R 110
    CNG2-G-420-82-20B(T) 34CrMo4 5.5  406 420 82 840 69 20 30 ECE R 110
    CNG2-G-420-100-20B(T) 34CrMo4 5.5  406 420 100 990 80 20 30 ECE R 110

    Remark: T means taper thread.

    Q/JWN 22 Fully-wrapped composite cylinders with aluminum alloy liner for the on-board storage of compressed natural gas as a fuel for automotive vehicles
    Type

    Liner Outside

    Diameter(mm)

    Outside

    Diameter(mm)

    Working

    pressure
    (MPa)

    Test

    pressure
    (MPa)

    Liner

    material

    Liner design wall

    thickness(mm)

    Nominal water

    capacity (L)

    Length of shell

    (without valve)(mm)

    Nominal

    weight(kg)

    Certificate
    CNG3-C-346-80-20S 346 356  20 30 6061铝合金 5.0  80 1095 35.0  No Certification
    CNG3-C-346-80-20T 346 356  20 30 6061铝合金 5.0  80 1060   No Certification
    CNG3-C-346-85-20S 346 356  20 30 6061铝合金 5.0  85 1153 36.5  No Certification
    CNG3-C-346-85-20T 346 356  20 30 6061铝合金 5.0  85 1118   No Certification
    CNG3-C-346-90-20S 346 356  20 30 6061铝合金 5.0  90 1210 37.8  No Certification
    CNG3-C-346-90-20T 346 356  20 30 6061铝合金 5.0  90 1175   No Certification
    CNG3-C-346-95-20S 346 356  20 30 6061铝合金 5.0  95 1267 39.6  No Certification
    CNG3-C-346-95-20T 346 356  20 30 6061铝合金 5.0  95 1232   No Certification
    CNG3-C-346-100-20S 346 356  20 30 6061铝合金 5.0  100 1325 41.2  No Certification
    CNG3-C-346-100-20T 346 356  20 30 6061铝合金 5.0  100 1290   No Certification
    CNG3-C-346-105-20S 346 356  20 30 6061铝合金 5.0  105 1382 42.9  No Certification
    CNG3-C-346-105-20T 346 356  20 30 6061铝合金 5.0  105 1347   No Certification
    CNG3-C-346-110-20S 346 356  20 30 6061铝合金 5.0  110 1440 44.4  No Certification
    CNG3-C-346-110-20T 346 356  20 30 6061铝合金 5.0  110 1405   No Certification
    CNG3-C-346-115-20S 346 356  20 30 6061铝合金 5.0  115 1495 46.0  No Certification
    CNG3-C-346-115-20T 346 356  20 30 6061铝合金 5.0  115 1460   No Certification
    CNG3-C-346-120-20S 346 356  20 30 6061铝合金 5.0  120 1553 47.6  No Certification
    CNG3-C-346-120-20T 346 356  20 30 6061铝合金 5.0  120 1518   No Certification
    CNG3-C-346-125-20S 346 356  20 30 6061铝合金 5.0  125 1610 49.2  No Certification
    CNG3-C-346-125-20T 346 356  20 30 6061铝合金 5.0  125 1575   No Certification

    Remarks: S means double bottle mouth, T means single bottle mouth.

    GB/T 28053 Composite cylinders for breathing apparatus
    Type

    Liner Outside

    Diameter(mm)

    Outside

    Diameter(mm)

    Working

    pressure(MPa)

    Test

    pressure
    (MPa)

    Liner

    material

    Design wall

    thickness(mm)

    Nominal water

    capacity (L)

    Cylinder

    height(mm)

    Nominal

    weight(kg)

    Certificate
    CRPⅢ-145-6.8-30-T 145 157 30 50 AA6061 2.0  6.8 528 4.0  Type Approval

    Remarks: T means convex bottom.

    EN 12245 Transportable gas cylinders—Fully wrapped composite cylinders
    Type

    Liner Outside

    Diameter(mm)

    Outside

    Diameter(mm)

    Working

    pressure(MPa)

    Test pressure
    (MPa)

    Liner

    material

    Design wall

    thickness(mm)

    Nominal water

    capacity (L)

    Cylinder

    height(mm)

    Nominal

    weight(kg)

    Certificate
    CRPⅢ-145-6.8-30-T 145 157 300 450 AA6061 1.5  6.8 528 4.2 PED

    Remarks: T means convex bottom.
